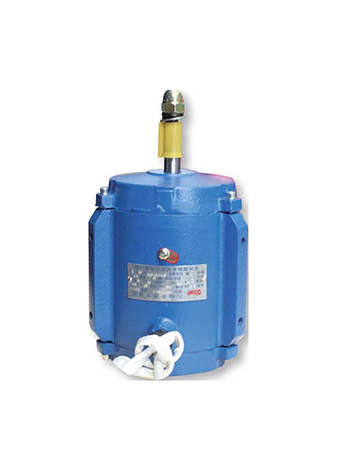

YSF3 series three-phase asynchronous motor for smoke exhaust fan

2024-02-02 08:24:03
second
YSF3 series three-phase asynchronous motor for smoke exhaust fan
Detailed introduction:

Smoke exhaust fan series three-phase asynchronous motor is a fully enclosed single-speed motor independently developed by Suzhou Deneng Co., LTD. The design concept of the motor is advanced, fully considering the characteristics of the smoke exhaust fan load, with compact structure, high energy efficiency, low noise, low vibration, stable reliable operation, long service life so on. The motor relies on the wind generated by the operation of the fan at the load end for cooling, the structure is more compact than that of the ordinary motor, which greatly saves the installation space provides strong support for the compact structure design of the fan.


Main Performance Main Performance

• Rated Power Range:0.4-7.5KW

• Rated Frequency: 50Hz

• Rated Voltage: 380V

• Motor Poles: 2, 4, 6, 8, 10, 12

• International Protection Standard: IP54, IP55



Insulation system:

Designed according to grade F (155P), the motor temperature rise is assessed according to 80K when rated output direct power supply

Motor cooling method: The standard cooling method is IC410 self-fan cooling, relying on cooling tower cooling wind for cooling

Casting material: Cast iron

Standard installation type: IMV30

Motor can choose PTC PT100 thermistor for winding protection, can also be installed winding temperature measurement device, more than 160 motor can choose bearing temperature measurement device


Special design: Suzhou Deneng Motor Co., Ltd. can design special voltage, frequency motor according to customer requirements; The appearance color of the motor can be adjusted according to customer requirements, V1 installation can be designed according to customer requirements.
